How can I access the WB system name from Mechanical ?

Pernelle Marone-Hitz

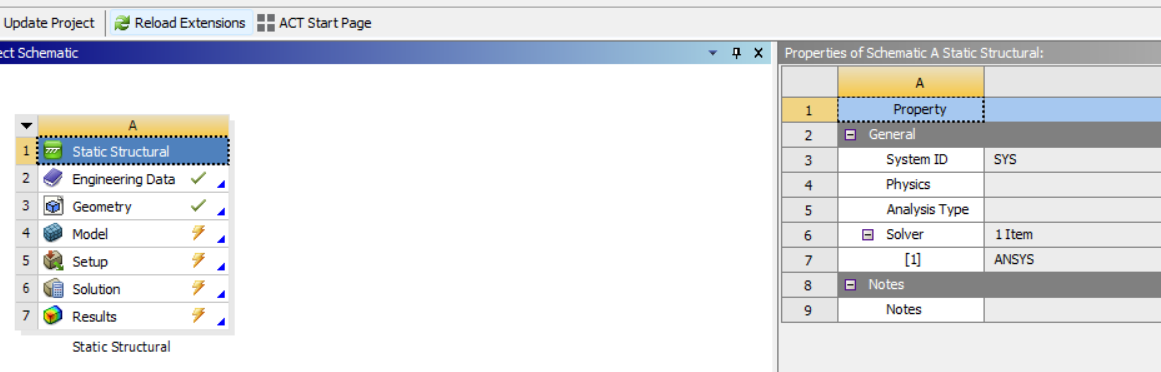

I'd like to get the System ID:

and the Directory Name:

of all WB components, from Mechanical.

Pernelle Marone-Hitz

Use this code:

import wbjn

WB_cmds = '''

all_mech = {}

all_systems = [system.ToString().Split(":")[-1] for system in GetAllSystems()]


for sys_name in all_systems:

  sysobj = GetSystem(sys_name)

  all_mech[sysobj.GetComponent(Name="Model").DirectoryName] = sysobj.Name

  returnValue(all_mech)

  '''

block_name = wbjn.ExecuteCommand(ExtAPI,WB_cmds)
