PyFluent cannot inject multiple UDM-s (SV_UDM_I) into Fluent

zza2bp

Dear Ansys Developers,

I am building a topology optimization toolchain using Python as the outer optimization driver and Fluent 2025 R2 for the primal/adjoint solves. I am using PyFluent to directly inject initialization fields (e.g., γ, α, k) into Fluent’s User Defined Memory (UDM) blocks via the solution_variable_data API.

The Issue:
When I attempt to push data into SV_UDM_I with 1 UDM allocated, the data maps perfectly to the cell coordinates (creating my desired structured pin geometry). However, when 3 (or more) UDMs are allocated, the exact same injection method results in scrambled, randomized data across the domain.

It appears the gRPC bridge is failing to correctly map or serialize the multi-dimensional interleaved/sequential memory blocks when SetSvarData is called for multiple UDMs, resulting in fields bleeding into each other.

My Injection Command:

 # arr_udm_flat is a 1D numpy float64 array sized (num_cells * num_udms)
 solver.fields.solution_variable_data.set_data(
     variable_name="SV_UDM_I",
     zone_names_to_data={zone_name: arr_udm_flat},
     domain_name=domain_name
 )

Environment:

Fluent 2025 R2 (3D, Double Precision, 8 parallel processes)

ansys-fluent-core versions tested: v0.35.0, v0.39.1, v0.40.1

What I have tried (none of which resolved the scrambling with 3+ UDMs):

• Array Shaping: Attempted pushing standard 1D flattened arrays, Interleaved (num_cells, 3) 2D tensors, and Sequential (3, num_cells) 2D tensors.

• Ghost Cell Padding: Explicitly sized the NumPy array to match Fluent's total allocated memory (including partition ghost cells) rather than just the active cell count.

• Alternative APIs: Attempted to bypass SV_UDM_I by using field_data.set_scalar_field_data("user-memory-0", ...) for individual injections, but this method is deprecated/unavailable in newer PyFluent builds for Cell Zones.

• Bypass the "solver.fields.solution_variable_data.set_data" method and use a User Defined Function based on txt files saved to hard disk --> also the same read-in error in case of more than one .

Attachments:

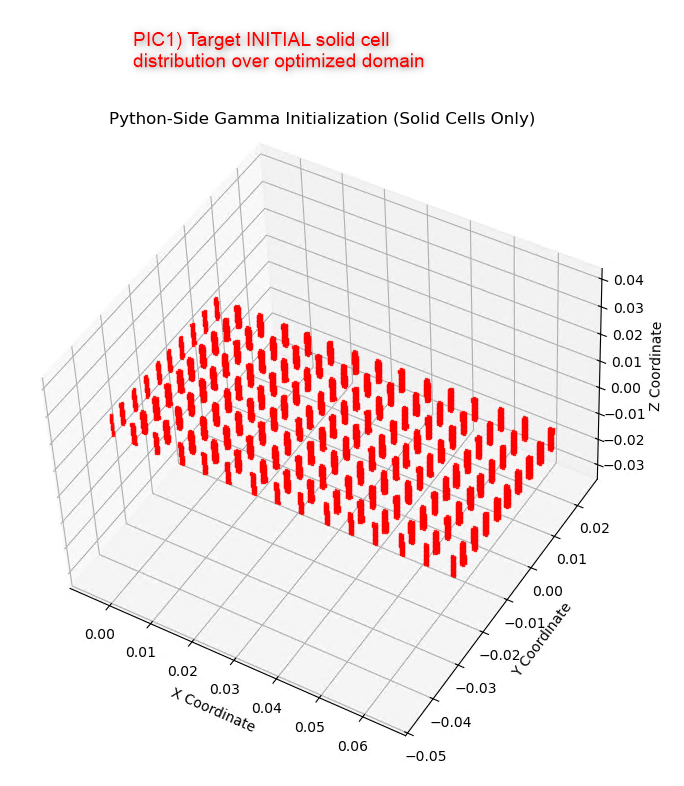

PIC1) Target_Distribution.png: The successful geometric distribution when only 1 UDM is allocated.

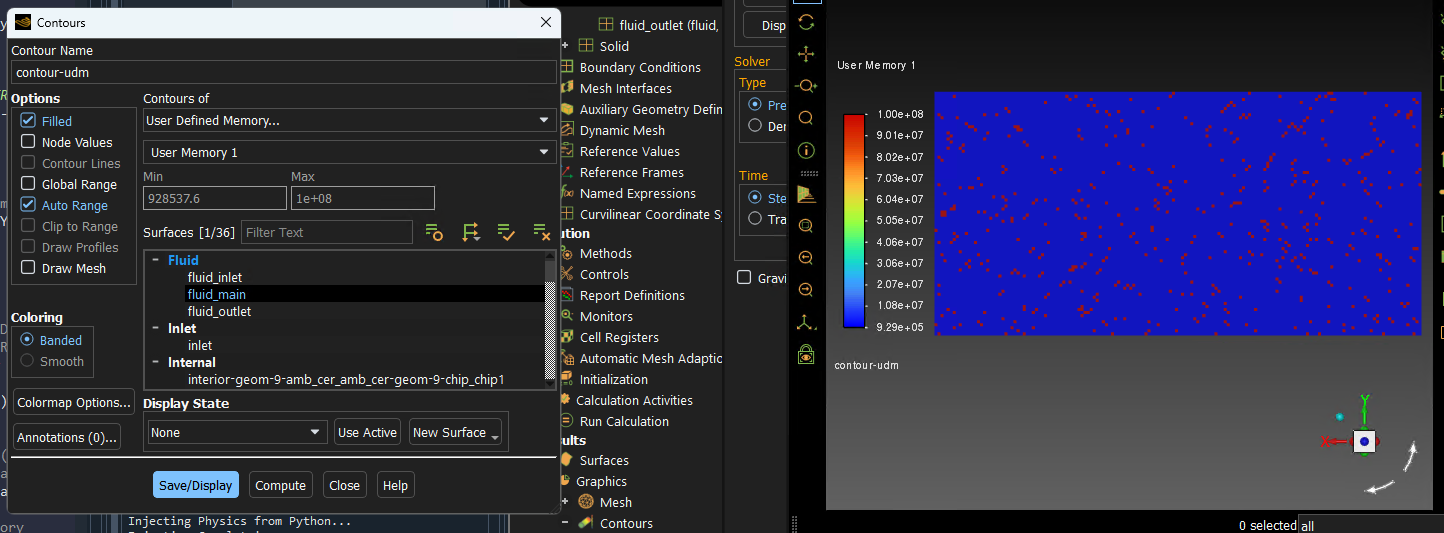

PIC2) Scrambled_Multiple_UDMs.png: The randomized data corruption that occurs when 3 UDMs are allocated and pushed.

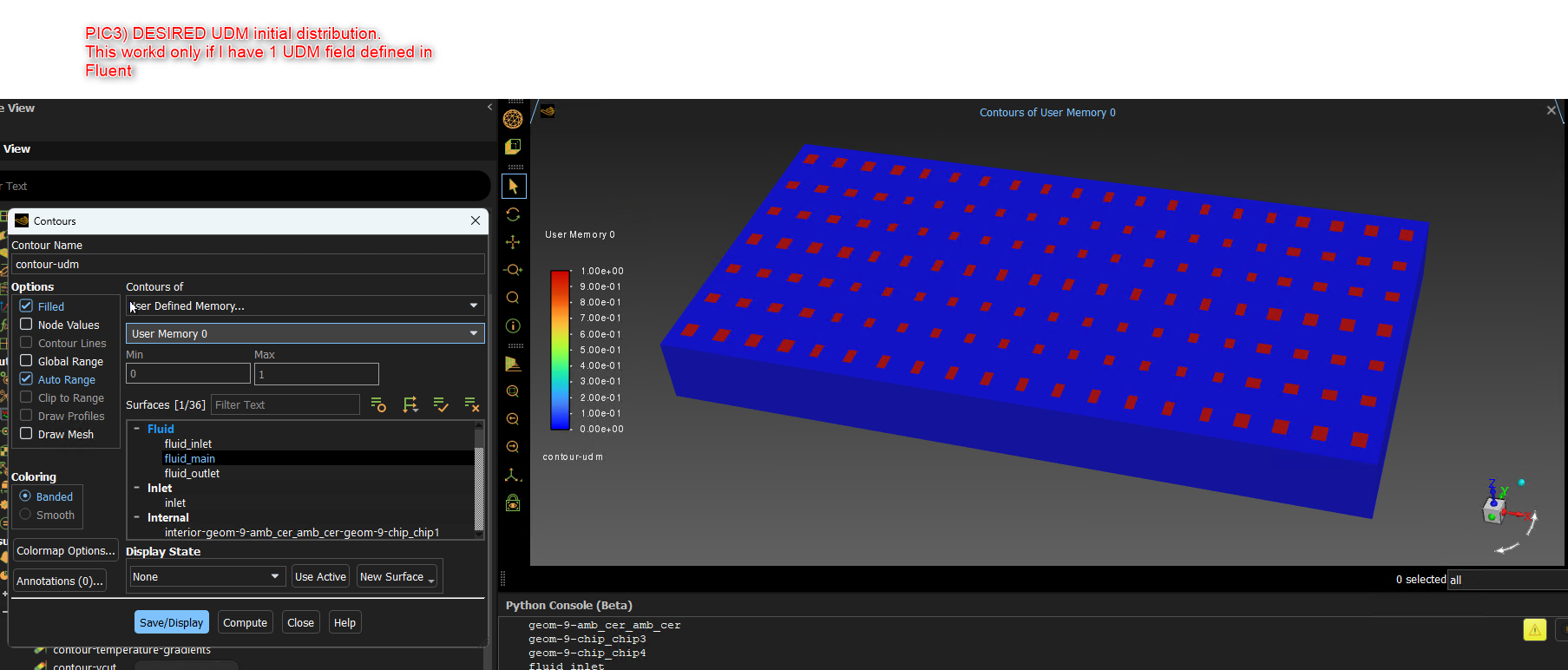

PIC3) Fluent visualization of well injected UDM, in case there is only one UDM defined

Code_Snippet.py: My minimal reproducible example for centroid extraction and UDM injection.

Has anyone successfully injected multi-column data into SV_UDM_I using recent PyFluent builds, or is there a specific undocumented array shape/stride required by the gRPC serializer for multiple UDMs? Any guidance is appreciated.

Vishal M

Hello @zza2bp ,

This is more of a parallelization issue. The array structure for example with 2 UDMs with 2 processors would be the following:

Processor1 → UDM0 data,

Processor1 → UDM1 data,

Processor2 → UDM0 data

Processor2 → UDM2 data

A simple way to verify this structure is to patch each UDM with a distinct constant value and then use get_data() to inspect the returned array.

To generate the desired pin pattern, you would need to:

1. Use the centroid data to identify the cells that should be modified and those that should remain unchanged.
2. Account for the fact that cell ordering in the returned array is not globally continuous or straightforward. Instead, the data is organized into processor-local chunks based on the domain decomposition.
3. Once the target cell indices have been identified, use the inferred UDM array layout to update only the entries corresponding to those cells.

By combining the centroid mapping with the processor-aware UDM storage structure, you can correctly populate the UDM fields and reconstruct the required pin distribution.
