Extract Tabular Data Min, Max, Avg of Field Results to csv file

mgoldgruber

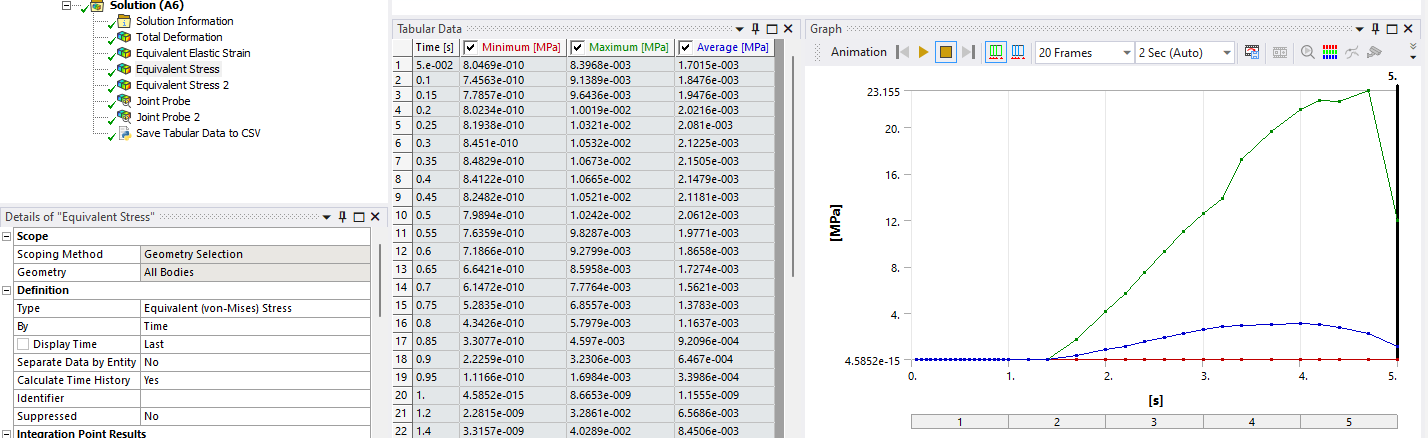

The following code extracts the Tabular Data Min, Max, Avg Field Results seen in Mechanical (e.g. von mises stress, deformation, etc.) to a CSV file. The file is saved in the user_files folder in the Workbench Project folder.
In contrary to other solutions in this Forum (https://discuss.ansys.com/discussion/255/how-to-access-tabular-data-using-act)
this one works without the Mechanical Window to be open and therefore allows for batch-mode execution for automation with, Ansys optiSLang, for instance.

def after_post(this, solution):# Do not edit this line
    """
    Called after post processing.
    Keyword Arguments :
        this -- the datamodel object instance of the python code object you are currently editing in the tree
        solution -- Solution
    """
    import mech_dpf
    import Ans.DataProcessing as dpf
    import os
    import wbjn
    mech_dpf.setExtAPI(ExtAPI)

    dpn = wbjn.ExecuteCommand(ExtAPI,"returnValue(a+Parameters.GetActiveDesignPoint().Name)",a="dp")
    projectDir = wbjn.ExecuteCommand(ExtAPI,"returnValue(GetUserFilesDirectory())")
    myResName = 'Sim_vonmises'

    # GET SOLUTION SOURCE (uncomment to use outside of this method or in scripting editor)
    #solution = Model.Analyses[0].Solution

    #GET DATA SOURCE (i.e. result file)
    dataSource = dpf.DataSources(solution.Parent.ResultFileName)

    # GET TIMESTEPS OR FREQUENCIES
    time_op = dpf.operators.metadata.time_freq_provider(data_sources=dataSource).outputs.gettime_freq_support().TimeFreqs
    time = time_op.Data
    time_unit = time_op.Unit

    # DEFINE FOR WHICH NAMED SELECTION THE TABLE OF MIN/MAX/AVG RESULTS SHOULD BE EXTRACTED (ATTENTION! NAMED SELCTION NAME MUST BE ALL CAPS!)
    # UNCOMMENT THIS LINE AND CHANGE THE NAMED SELECTION NAME TO EXTRACT DATA FOR A SPECIFC NAMED SELECTION
    # ns_scoping = dpf.operators.scoping.on_named_selection(requested_location='Nodal', named_selection_name='INNER_LID_BODY', data_sources=dataSource)

    # GET RESULT FIELD CONTAINER (e.g. Stresses, Temperature, etc.)
    # ADD mesh_scoping IF EXTRACTION SHOULD BE DONE ON NAMED SELECTION FROM LINE 31 (mesh_scoping = None -> Use full mesh)
    fc = dpf.operators.result.stress_von_mises(mesh_scoping=None, time_scoping=time, data_sources=dataSource).outputs.getfields_container()

    # GET MIN MAX FROM FIELD (FIELD CONTAINER)
    minmax_op = dpf.operators.min_max.min_max_fc(fields_container=fc)

    # GET AVERAGE FROM FIELD (Sum up and divide by number of elements/nodes)
    sum_op = dpf.operators.math.accumulate_fc(fields_container=fc)
    avg_op = dpf.operators.math.scale_fc(fields_container=sum_op, ponderation=1.0/fc[0].ElementaryDataCount)

    # GET MIN MAX TABLE as List []
    min_res_table = minmax_op.outputs.field_min.GetData().Data
    max_res_table = minmax_op.outputs.field_max.GetData().Data

    # GET AVG TABLE as List []
    avg_res_table = []
    for i in range(avg_op.outputs.fields_container.GetData().FieldCount):
        avg_res_table.append(avg_op.outputs.fields_container.GetData()[i].Data[0])

    # WRITE TO CSV FILE
    filePath = os.path.join(projectDir,dpn + '_' + myResName + '.csv')
    if os.path.isfile(filePath):
        os.remove(filePath)
    with open(filePath,'w') as f:
        #Header
        f.write('Time ['+time_unit+'], Minimum ['+fc.Get(0).Unit+'], Maximum ['+fc.Get(0).Unit+'], Average ['+fc.Get(0).Unit+']')
        f.write('\n')
        #Data
        for t, min_, max_, avg_ in zip(time, min_res_table, max_res_table, avg_res_table):
            f.write(str(t))
            f.write(', ' + str(min_)+', ' + str(max_)+', ' + str(avg_))
            f.write('\n')
