How do I plot difference in results using PyDPF?

Ayush Kumar

I need to plot difference in results between two models, with same geometry but different mesh.

Ayush Kumar

The following code maps results from the coarser mesh to the finer mesh and then plots differences between the mapped and real results on the finer mesh.

    from ansys.dpf import core as dpf
    from ansys.dpf.core.plotter import DpfPlotter


    map_to = r"\Path \to\model1\file.rst"
    map_from = r"\Path \to\model2\file.rst"

    model_from = dpf.Model(map_from)
    ds_from = dpf.DataSources(map_from)

    model_to = dpf.Model(map_to)

    mesh_from = model_from.metadata.meshed_region
    mesh_to = model_to.metadata.meshed_region

    sx_from_op = dpf.operators.result.stress_X(data_sources=ds_from)
    sx_from = sx_from_op.outputs.fields_container.get_data()

    # Map to
    mapped_res_op = dpf.operators.mapping.on_coordinates(fields_container=sx_from, coordinates=mesh_to.nodes.coordinates_field)
    mapped_res = mapped_res_op.outputs.fields_container.get_data()

    plot = DpfPlotter()

    # Create a new mesh and translate it along the x axis.
    mesh_new_from = mesh_from.deep_copy()
    overall_field = dpf.fields_factory.create_3d_vector_field(1, dpf.locations.overall)
    overall_field.append([50.0, 0.0, 0.0], 1)  # Translate by 50.0mm
    coordinates_to_update = mesh_new_from.nodes.coordinates_field
    add_operator = dpf.operators.math.add(coordinates_to_update, overall_field)
    coordinates_updated = add_operator.outputs.field()
    coordinates_to_update.data = coordinates_updated.data

    # Calculate Delta
    ds_to = dpf.DataSources(map_to)
    targ_res_sx_op = dpf.operators.result.stress_X(data_sources=ds_to)
    targ_res_sx = targ_res_sx_op.outputs.fields_container.get_data()

    field_lc1 = targ_res_sx[0]
    field_lc2 = mapped_res[0]

    # Scale LC2 to -1.
    field_lc2_sc = dpf.operators.math.scale(field=field_lc2, weights=-1.0)

    # Delta
    delta_op = dpf.operators.math.add(fieldA=field_lc1, fieldB=field_lc2_sc)
    delta = delta_op.outputs.field.get_data()

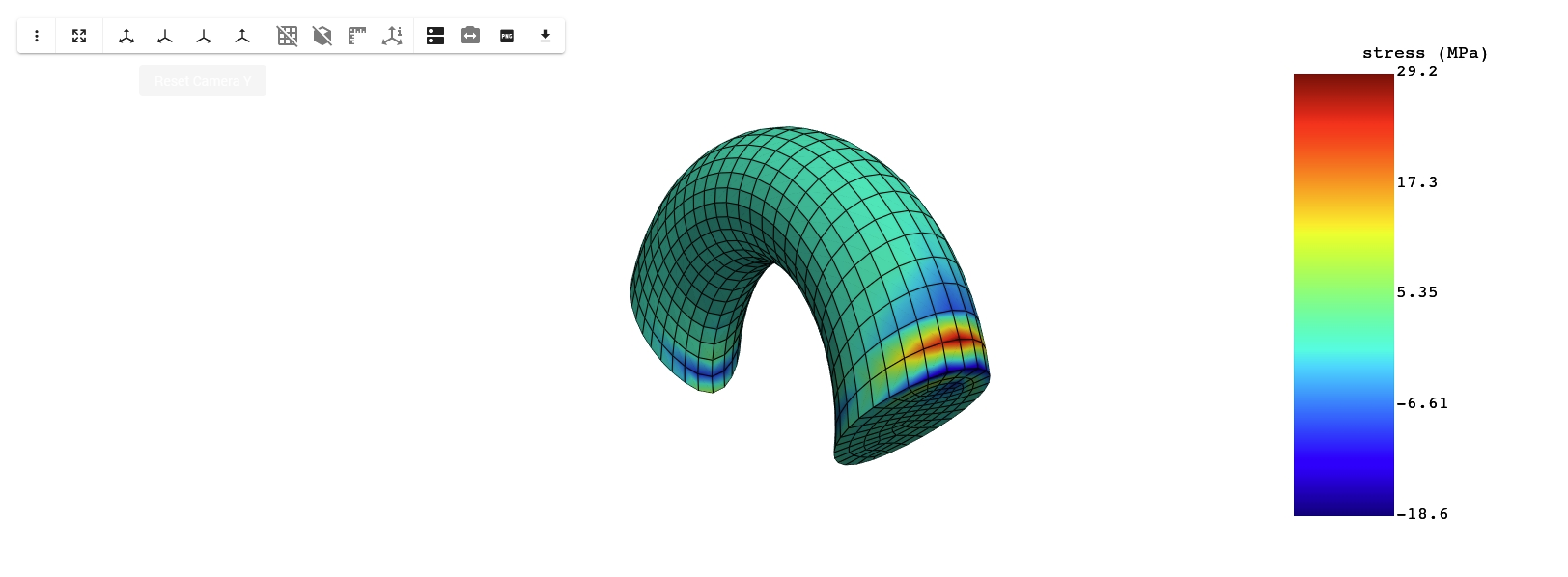

    # Plot Delta results
    plot.add_field(
        delta,
        meshed_region=mesh_to
    )

    plot.show_figure()
