How can I cut a part from a solid body in Ansys spaceclaim?

Options
Mah6iid
Mah6iid Member Posts: 3 **
in 3D Design

Hi there,

I am trying to create a porous media structure that contains solid and liquid phases with smooth edges. So, first, I created the porous region and enclosed this region in a cube box. Now, I need to cut the extended sections of porous media from the edges of the cube box. To do so, I used cut/ split operation in Ansys spaceclaim, using a plate, but it does not work on this geometry that I have and I get split body error. Could anybody please guide me on how to achieve this?

P.S: This is a sample target image that I want to get to, ultimately. https://media.springernature.com/full/springer-static/image/art:10.1038/s41597-022-01664-0/MediaObjects/41597_2022_1664_Fig4_HTML.png?as=webp

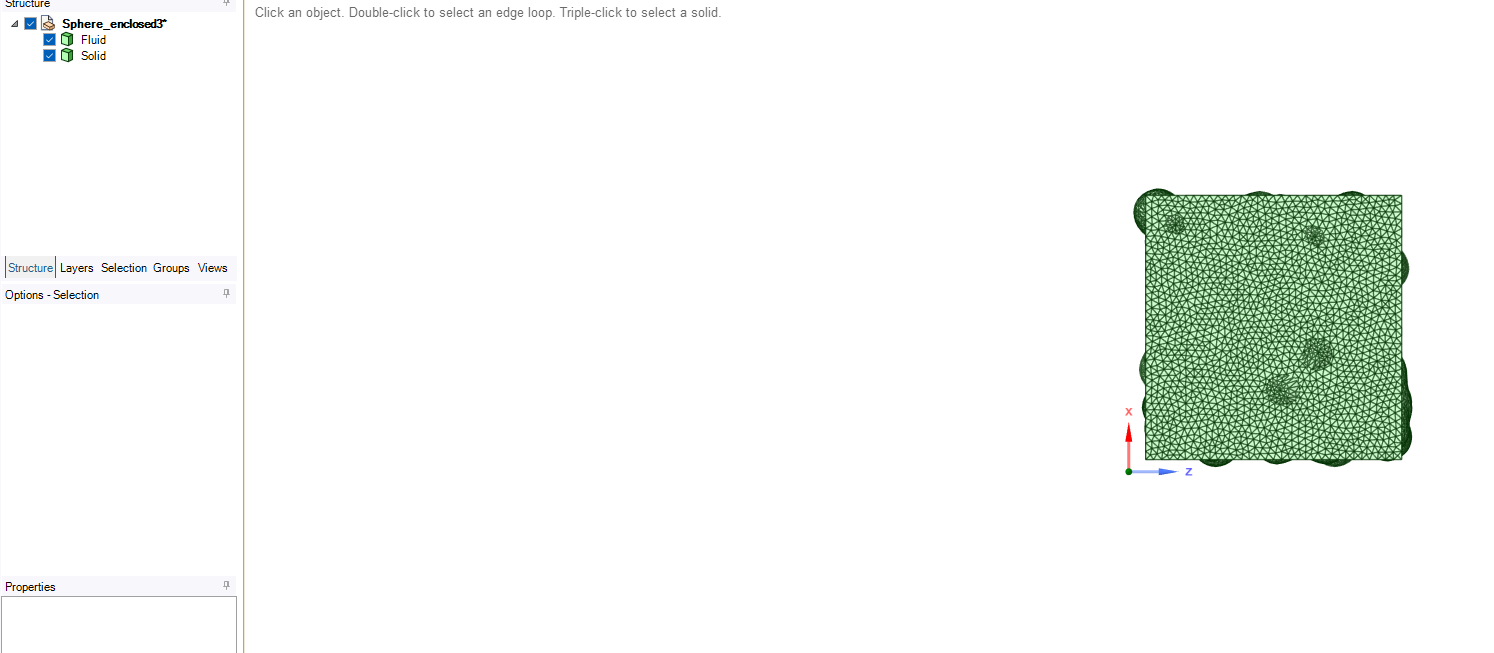

Also, this is my current geometry

Tagged:

Answers

  • James Derrick
    James Derrick Administrator, Employee Posts: 379
    Ancient Membership 100 Comments 100 Likes 25 Answers
    admin

    Hi @Mah6iid thanks for your question, but similar to my answer to your other question, this forum is specifically for questions regarding scripting and/or development using Ansys Developer tools. If you have a scripting question please include some details regarding code you have tried and documentation you have already considered. Otherwise you might find more luck over on the Ansys Innovation Space forum, which is specifically for non-developer questions.
