Question – APDL Coding for Multi-Step Moment Loading and Rotation Extraction

KAO

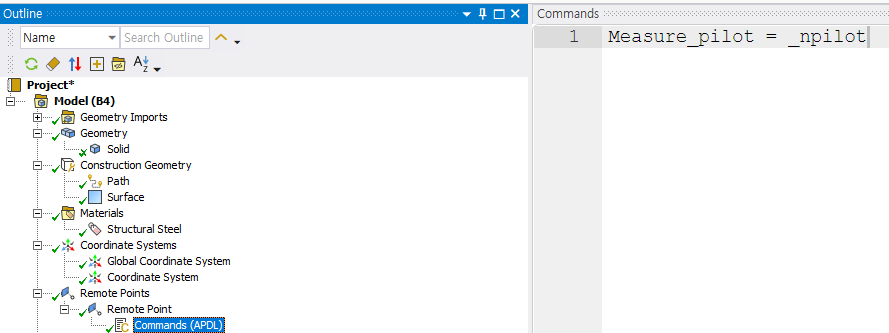

1.Assign a Remote Point and link the data of the corresponding edge to Measure_Point through a command.|

2. Apply a moment using a tabular input, divided into a total of 10 steps.

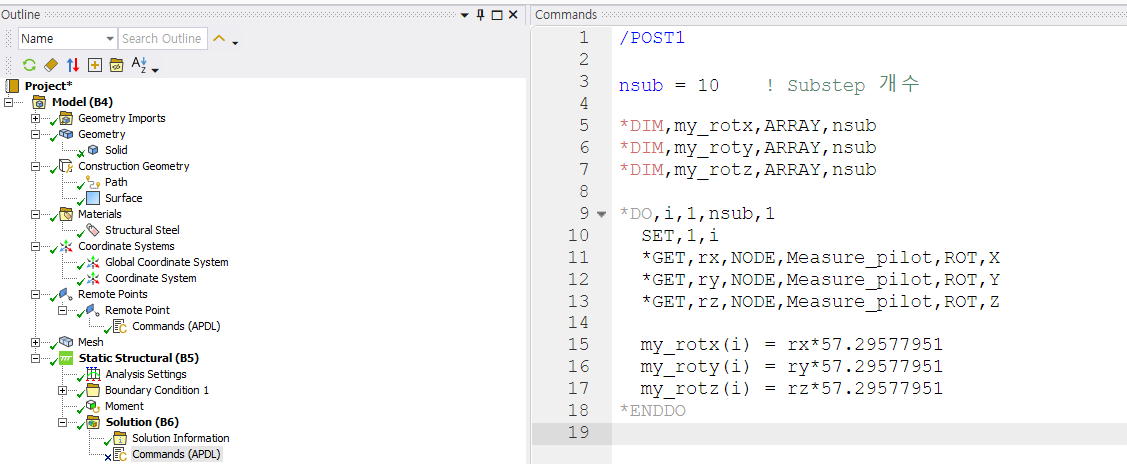

3. In Solution → Command (APDL), when applying the moment in 10 steps, write code to extract the rotation angle at each step.

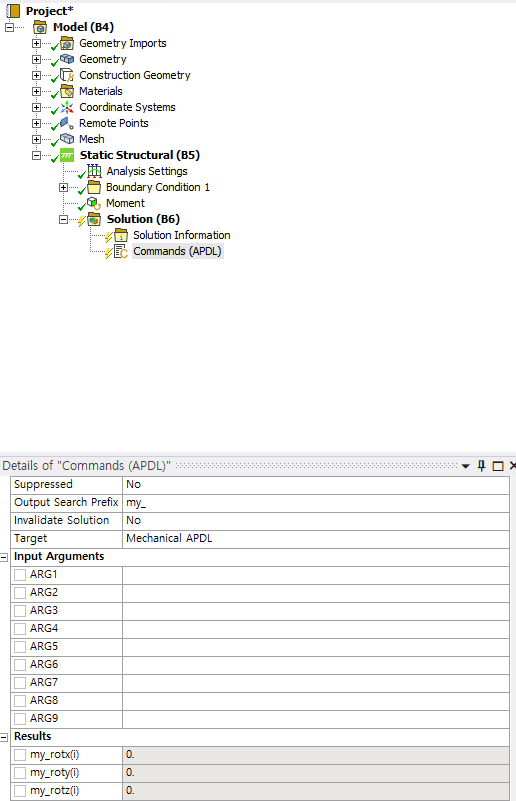

Problem: In this state, the results cannot be viewed in the Result section.

I think there’s an issue in the code—how should I modify it?

Mike.Thompson

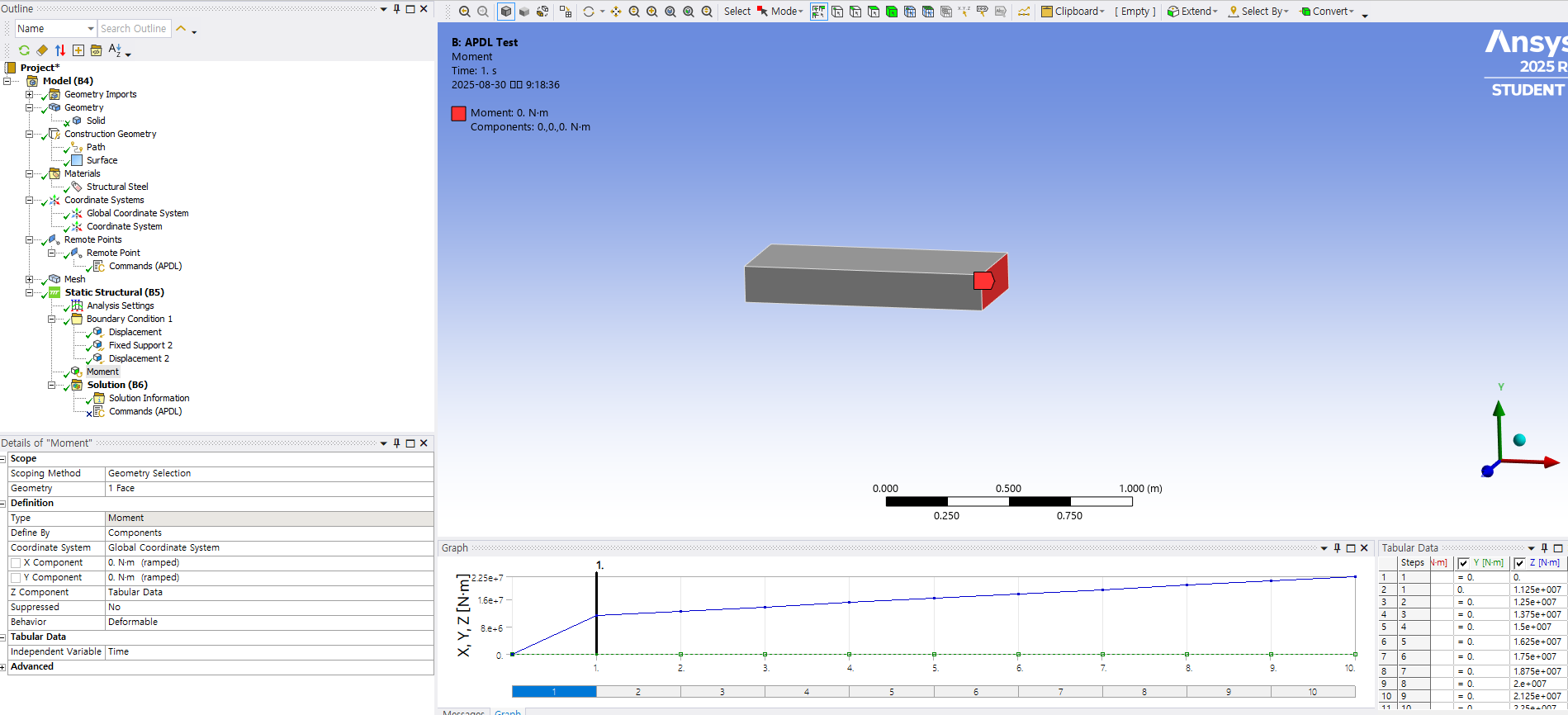

one issue is you should scope the moment load to the remote point itself. In the screenshot you have it scoped to the same geometry, but this will make a second remote point for the moment load, distinct from the remote point with the snippet.
