Copy timesteps (initial, min and max) from excel to Mechanical

Mohan Urs

Is there a way to apply timestep settings that are saved in an csv file into the analysis settings of Mechanical ?

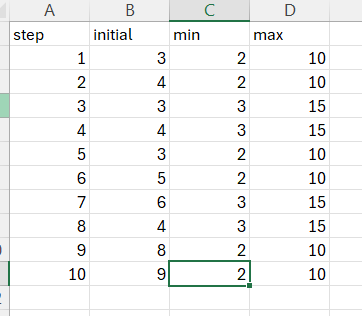

For example in below image i have a set of step numbers and their respective initial, min and max substeps listed -

I want to apply these numbers to my model.

Mohan Urs

You can use the below snippet to achieve this -

import csv

csv_path = r'D:\z_export_items\test.csv'

rows = []

with open(csv_path, 'r') as f:

    reader = csv.DictReader(f)

    for row in reader:

        rows.append({

            'step': int(row['step']),

            'initial': float(row['initial']),

            'min': float(row['min']),

            'max': float(row['max'])

        })

analysis_settings = ExtAPI.DataModel.Project.Model.Analyses[0].AnalysisSettings

with Transaction():

    analysis_settings.NumberOfSteps = len(rows)

    for entry in rows:

        step = entry['step']

        initial = entry['initial']

        minimum = entry['min']

        maximum = entry['max']

        # Apply the time-step values

        analysis_settings.SetDefineBy(step, TimeStepDefineByType.Substeps)

        analysis_settings.SetInitialSubsteps(step, initial)

        analysis_settings.SetMinimumSubsteps(step, minimum)

        analysis_settings.SetMaximumSubsteps(step, maximum)
